This SEC-32 softgel encapsulation machine is the smallest softgel encapsulation machine from China and world, mainly applicable for formula confirmation trial production for food supplement and medicine, make the food supplement and medicine encapsulated into various size and fill weight soft capsule, shaping and drying, it can increase the bioavailability of encapsulated filled material, prolong service life, also shape is beautiful, formula is changeable and flexible, mainly service for universities students trainee operation and new product R&D, small trial and middle trial.

• Food, supplement, medicine, Chinese medicine new formulations soft capsule technical research.
• Students in school trainee operation demonstration teaching.
• Soft capsule variety trial production small trial and middle trial.
• Imitate the soft capsule production line whole process, it can get soft capsule new variety production full set
• technical parameters via trial test, and guide batch production.
• Available for animal gelatin, vegetable tapioca starch, sodium alginate.

Welcome to contact our professional sales engineer for further support at sec@secsoftgel.com

SEC-32 is the newest product that we developed for full automatic lab scale softgel encapsulation, this model softgel machine is the one for both lab R&D and middle trial, its also the model who can manufacture both big and small fill weight (100mg-2000mg) (another model lab scale too is suitable for fill weight bigger than 2000mg), well designed completely according to GMP. It has single phase 220V power source, currently this model is widely applicable in Pharmaceutical research institutes and key universities.

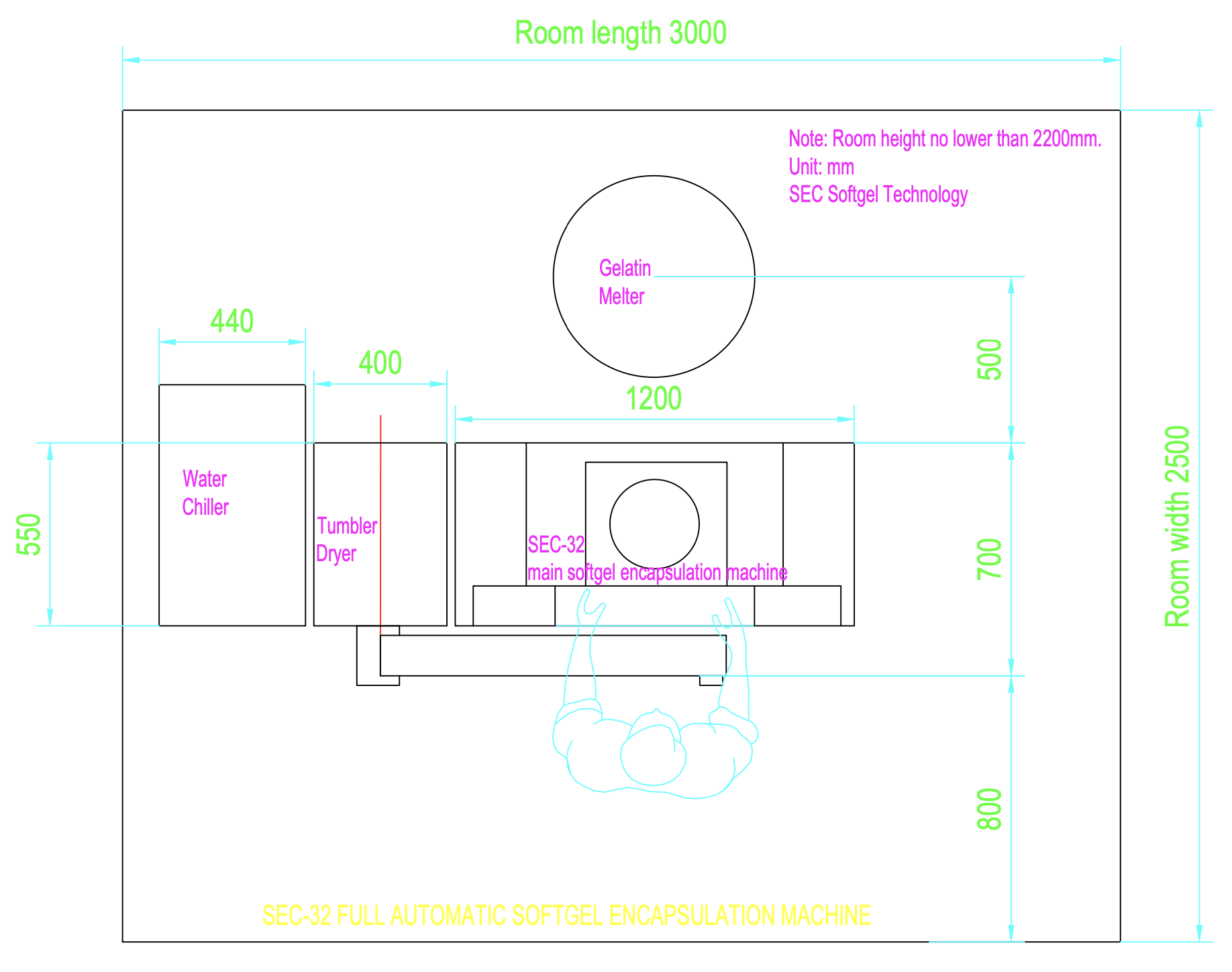

SEC-32 is applied with various types automatic control technology, simple operation, stable performance, reliable working. Whole machine adopt optimized design, complete functions and compact structure. Whole line includes one set softgel encapsulation main machine and control system, one basket tumbler dryer, one gelatin melting tank, one die roll set, one set of the capsule drying tray and trolley, (colloid mill and material preparation tank are optional, colloid mill is applicable for powder or suspension fill material), whole equipment adopt exquisite materials, completely comply with GMP requirements, whole equipment line require ground space small (2 square meters), applicable for various industries like medical, pharmaceutical, food, cosmetic, food supplement etc.

Technical parameters

• Main machine adopts computer control system, PLC touch screen operation.
• Max production capability: 5000 capsules/hour (example for fill weight 500mg)
• Die roll size: Φ64 × 75mm
• Die roll rotary speed: 0-5 RPM stepless variable speed
• Fluid single plunger supply amount: 0-1.5ml
• Finished soft capsule filling precision: ±1%
• Equipment voltage power: 1.5Kw single phase, 220V, 50Hz or 110V, 60Hz
• Whole machine comply with pharmaceutical hygiene standard
• Dimension: 800x650x1100mm
• Weight: 200kgs

Introduction of SEC team, the first softgel service platform in China:

• SEC softgel encapsulation machine and softgel die roll tooling have been manufacturing since year 1986, by aerospace and military technology and as a founder of softgel industry standard in China, it’s the world leading technology.

• With over 50 softgel machine lines yearly, more than 60% domestic market and over 1000 sets yearly for softgel die roll set tooling, over 30 cases yearly of production improvement and technique training, we have customers over 50 countries in 6 continents, the typical overseas-known customers that available to say are like Sanofi, Amway, By-Health, TongRenTang, Angel yeast, Neptunus, Bright Future, PuraCap etc., currently the tapioca starch veggie softgel encapsulation can be stable 2.5RPM whole line & max 5RPM whole line on our standard 150x250mm softgel machine.

• SEC die roll sets are manufacturing for user’s all softgel machines in the world like from Korea, Japan, Canada, American, Italy, China and India etc., for end users directly but also OEM for other softgel machine suppliers, at the same time, spare easy damage parts are providing like lubrication oil roller, plunger, seals, heaters, gelatin hose, spreader box, drying cloth in tumbler dryer, drying trays different colours etc., We are doing repair and refurbish softgel encapsulation machines for end users which are originally manufactured from Korea, China, Canada etc., with finished softgel good sealing and die roll shaft vibration 3um.

• Under the years effort of our platform technicians and affiliated raw material manufacture site, now we are manufacturing and exporting SEC vegetable gelatin raw material, by composition tapioca starch, technical support for the guaranteed successful high quality and high output softgel production is providing globally for customers who buy the SEC vegetable gelatin material.
