Middle Scale SEC-46 Softgel Machine

Production type middle capacity equipment SEC-46 softgel encapsulation machine, suitable for product sampling or middle or small batch production. Good for current popular small order OEM supplement private label softgel production, good for personalized small quantity softgel production need, save material consumption and increase the production performance, helpful for more competitive softgel cost and higher quality more beautiful softgel appearance for the OEM small order need. Available for gelatin, vegetable hydroxypropyl starch, sodium alginate. Good for medicine, supplement, paintball and cosmetic skin care softgel production.



SEC-46P3copy

  • Its structure compact, patent oscillating bar adding pressure of alignment way, open type machine head structure, operation very convenient, and maintenance especially simple.
  • Die roll rotary speed: 0-3.5RPM
  • Die roll tooling size: Diameter 150 x 100 mm (Diameter 6" x 4") (Diameter 150mm or 6” is the most stable type in the world currently)
  • Plunger piston filling volume: 1.5ml (±1.5%)
  • Piston tube amount: 8 pcs

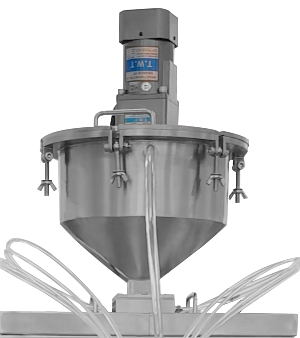

  • Insulation hopper with stirring function
  • Automatic feeding
  • SMC air pressure system, Siemens electrical original components, high reliability.
  • Outline dimension: 1800x900x1750mm
  • Power: 3.5Kw
  • Voltage: 3 phases 5 lines mode, 380V 50Hz / 220V 60Hz
  • Soft capsule capacity:

19,440 capsules/hour at 20 Oblong 3RPM when normal oil fill (pocket 108)
39,960 capsules/hour at 8 Oval 3RPM when normal oil fill (pocket 222)



Welcome to contact our professional sales engineer for further support at sec@secsoftgel.com





  • Main shaft supporting: type of bearing
  • Interface control by colored touch screen, more convenient and intelligent.
  • Softgel skin wheel cooling way: external water cooler, independent cooling machine to have temperature controlling to the gel ribbon film, more stable, synchronized working at left and right gel ribbon wheels, operation more convenient.
  • Softgel skin lubrication way: microscale lubrication pump system, softgel is cleaning free.
  • Feeding pump lubrication way: membrane pump external circulation.
  • Automatic material loading pump is equipped.
  • Softgel die roll tooling has the diameter same as large and bulk production model, it can better transfer the cavity size and softgel encapsulation process and data to future larger softgel encapsulation machine.
  • With independent cooling machine to have gelatin ribbon wheel temperature controlling, more stable and more convenient operation.
  • Gelatin liquid level is adopt capacitance type proximity switch controlling, non contact type, stable and reliable.
  • Gelatin ribbon lubrication has the micro lubrication by precision metering pump, saving the lubrication oil and at the same time reducing softgel drying pressure.
  • Tooling shaft adopt the brand new technology transmission structure, making transmission simple and reliable.
  • Tooling alignment adopts precision connection bar structure, realizing preposition alignment and accurate adjusting, operation convenient, one person can complete operation, and it can realize the online adjusting.
  • Open type machine head structure, convenient for maintenance and repair.
  • Equipment requires low energy consumption, compact structure, cover a small area only, very suitable for middle trial or production small batch application.



softgelSECphoto



Introduction of SEC team, the first softgel service platform in China:



  • SEC softgel encapsulation machine and softgel die roll tooling have been manufacturing since year 1986, by aerospace and military technology and as a founder of softgel industry standard in China, it’s the world leading technology.



  • With over 50 softgel machine lines yearly, more than 60% domestic market and over 1000 sets yearly for softgel die roll set tooling, over 30 cases yearly of production improvement and technique training, we have customers over 50 countries in 6 continents, the typical overseas-known customers that available to say are like Sanofi, Amway, By-Health, TongRenTang, Angel yeast, Neptunus, Bright Future, PuraCap etc., currently the tapioca starch veggie softgel encapsulation can be stable 2.5RPM whole line & max 5RPM whole line on our standard 150x250mm softgel machine.



  • SEC die roll sets are manufacturing for user’s all softgel machines in the world like from Korea, Japan, Canada, American, Italy, China and India etc., for end users directly but also OEM for other softgel machine suppliers, at the same time, spare easy damage parts are providing like lubrication oil roller, plunger, seals, heaters, gelatin hose, spreader box, drying cloth in tumbler dryer, drying trays different colours etc., We are doing repair and refurbish softgel encapsulation machines for end users which are originally manufactured from Korea, China, Canada etc., with finished softgel good sealing and die roll shaft vibration 3um.



  • Under the years effort of our platform technicians and affiliated raw material manufacture site, now we are manufacturing and exporting SEC vegetable gelatin raw material, by composition tapioca starch, technical support for the guaranteed successful high quality and high output softgel production is providing globally for customers who buy the SEC vegetable gelatin material.
